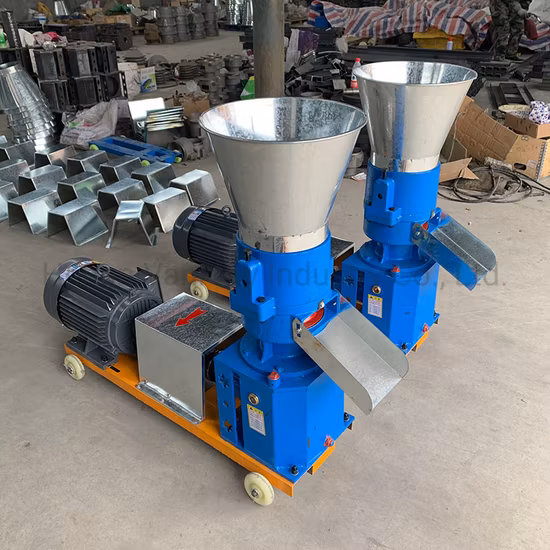

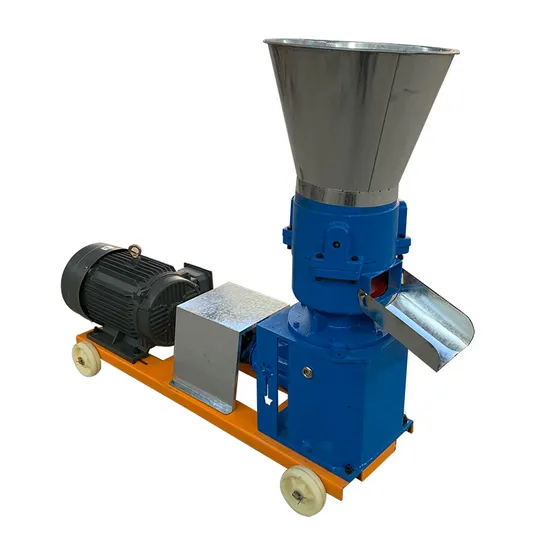

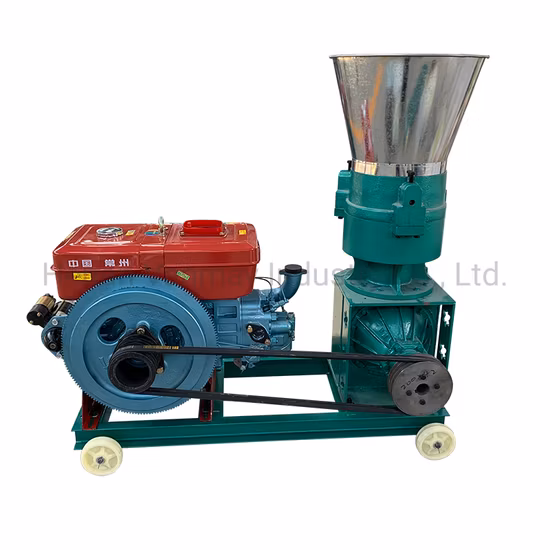

40kg/H Most Stable Feed Extruder Floating Fish Feed Pellet Machine

Basic Info

Model NO.	DGP-40C
Feed Type	mixed
Customized	Customized
Package	Yes
Is_Customized	Yes
English Mannual	Yes
Warranty Time	1 Year Except Spare Parts
Delivery Time	Within 15 Days After Receive Deposit
Model	8 Models Avaliable
Name	extruder
Capacity	30-40kg/h
Transport Package	Wooden Box
Specification	CE, SGS
Trademark	VIC
Origin	China
Production Capacity	1000PCS Per Year

Product Description

Most stable fish fed extruder floating fish feed pellet machine

Introduction about the floating fish feed pellet machine:
The raw materials can be wheat, soybean, cake and other leftovers etc.The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.

Features about the floating fish feed pellet machine:(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden bearing to ensure its safety. The main motor is Y-Series three phrase industrial pure coppermotor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.Main date about the floating fish feed pellet machine:

Model	DGP40-C	DGP50-C	DGP60-C
Power (KW)	5.5kw	7.5+0.4kw	15+0.4
Capacity (kg/h)	30-40	60-80	120-150
Weight(kg)	350	400	450
Machine size (mm)	13501030840	14701110850	14701140840

Other models date

Model	Capacity/t/h	Power/kw	Feed power/kw	Diameter/mm	Cutting power/kw	Size(mm)
DGP40-C	0.03-0.04	5.5	0.4	Φ40	0.4	13501030840
DGP50-C	0.06-0.08	7.5-11	0.4	Φ50	0.4	14701110850
DGP60-C	0.12-0.15	15	0.4	φ60	0.4	14701140840
DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4	17901470940
DGP80-B	0.2-0.25	22	0.4	φ80	0.6	18501470950
DGP90-B	0.32-0.35	37	0.6	φ90	0.8	230016401000
DGP120-B	0.5-0.6	55	1.1	φ120	2.2	235020101110
DGP135-B	0.7-0.8	75	1.1	φ133	2.2	245020401200
DGP160-B	1-1.2	90	1.5	φ155	2.2	255021001300
DGP200-B	1.8-2.0	132	1.5	φ195	3.0	265022401400
